PRODUCTOS | TOMA DE FUERZA AUXILIAR | ALLISON

TYPE : OPS-862 Hot Shift, 2 gear Power Take-off

Gearbox Type Allison Automatic transmission, medium-duty, low-profile PTO
MD-3000/3060/3066/3070/3200/3500/3560
HD-4000/4060/4500/4560/4700/4800
Mounting Styles Right, Left
Control Type Pneumatic
Sense of Rotation Right
Ratio 0,66
Shift Type PowerShift (Hydraulic) Hydraulic
Standard Output Shaft Size
Intermittent Torque Rating  (Nm) - (lbs)
Output Shaft (HP)
Output Shaft (Kw)
Weight
Options SAE B, SAE BB, or ISO 4 bolts
Truck brands
Applications Refuse trucks, Utility trucks, Fire/rescue vehicles, Dump Truck and Trailer
Equivalent: Chelsea 280, 281, Muncie CS24
Bezares 3252 (241703, 241903), 3260 (helical gear)
Toma de fuerza, PTO con cambio en caliente, TDF Allison, TDF bezares, TDF Parker, TDF Chelsea, TDF muncie, Bezares 3252, Parker Chelsea 280 G y Muncie HS24 Series Optima DrivesToma de fuerza, PTO con cambio en caliente, TDF Allison, TDF bezares, TDF Parker, TDF Chelsea, TDF muncie, Bezares 3252, Parker Chelsea 280 G y Muncie HS24 Series

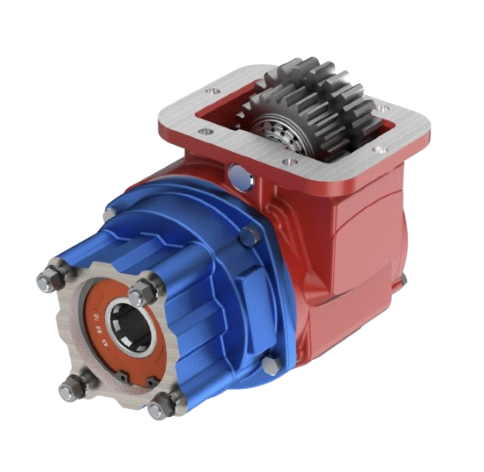

TYPE : OPS-233

Gearbox Type Allison 1000-2000-2100-2200-2400 transmission and Aisin automatic transmissions
Mounting Styles 6 bolt, hotshift PTO - Clutch System
Control Type Pneumatic
Sense of Rotation Left
Ratio 0,72
Shift Type Electric Shifting
Standard Output Shaft Size
Intermittent Torque Rating  400 (Nm) - (lbs)
Output Shaft (HP)
Output Shaft (Kw) 41,9
Weight  22-25
Options ISO & SAE B & SAE B-B & UNI & Flange Outputs
Truck brands ISUZU / KENWORTH / PETERBILT / FORD / MITSUBISHI / DETROIT DIESEL / ZETROS MERCEDES / 180E28 IVECO / 65CF-240 DAF / DENNIS Elite / DENNIS Elite Kerbsider / DENNIS Sabre XL / 2628LL Econic MERCEDES BENZ / SEDDON / HINO USA NB6J / NC6J / ND8J / NE8J / NJ8J / ND8J / NF8J / NV8J
Applications Dump Trucks, Tow and Recovery, Water Trucks, Service Trucks, Aerial Trucks
Equivalent: Chelsea 271 - 272, Bezares 3300, Muncie CS6, Chelasea 272XAAJX-13AB, INP 096A6, INP 096H1, Muncie TG Series
Toma de fuerza Chelsea 271-272, Bezares 3300, Muncie CS6, toma de fuerza de cambio en caliente para transmisión Allison 1000/2000 y transmisiones automáticas Aisin Optima DrivesToma de fuerza Chelsea 271-272, Bezares 3300, Muncie CS6, toma de fuerza de cambio en caliente para transmisión Allison 1000/2000 y transmisiones automáticas Aisin

TYPE : OPS-672

Gearbox Type Allison and CAT automatic transmissions
Mounting Styles 10-Bolt, Right, Left
Control Type Pneumatic
Sense of Rotation Right
Ratio 1/1
Shift Type
Standard Output Shaft Size
Intermittent Torque Rating
Output Shaft (HP)
Output Shaft (Kw)
Weight  16 Kg
Options
Truck brands
Applications ideal for mobile applications requiring continuous power for load-sensing pumps like used on yard jockey trucks.
Equivalent: Parker/Chelsea PTO 267 series
Parker, Chelsea PTO 267, Optima DrivesParker, Chelsea PTO 267,

TYPE : OPS-078

Gearbox Type Allison automatic transmissions
Mounting Styles 10-Bolt
Control Type
Sense of Rotation
Ratio
Shift Type Power Shift (Hydraulic), Clutch Shift PTO
Standard Output Shaft Size 1-1/2" - 10T Spline w/ 1410 Flange
Intermittent Torque Rating 908  (Nm) - 670 (lbs.ft)
Output Shaft (HP) 500 RPM: 64, 1000 RPM: 128
Output Shaft (Kw) 500 RPM: 48, 1000 RPM: 95
Weight  25  (kg) - 56 (lbs)
Options
Truck brands
Applications Fire & Rescue, Refuse, Vacuum, Oil & Gas, Snow & Ice
Equivalent: Chelsea 870, Bezares 3131, 3151, Muncie CS10
Chelsea 870, Bezares 3131, 3151, Muncie CS10 Optima Drives

TYPE : OPS-772

Gearbox Type Allison,
Mounting Styles 10-Bolt
Control Type
Sense of Rotation
Ratio
Shift Type PowerShift (Hydraulic)
Standard Output Shaft Size 1-1/4" Round w/key
Intermittent Torque Rating 545 (Nm) - 402 (lbs.ft)
Output Shaft (HP) 500 RPM: 38, 1000 RPM: 77
Output Shaft (Kw) 500 RPM: 29, 1000 RPM: 57
Weight  22 (kg) - 49 (lbs)
Options Shaft Brake
Truck brands
Applications Refuse, Aerial, Snow & Ice Removal, Fire & Rescue
Equivalent: Chelsea 277, Bezares 3000 series,
Chelsea 277, Bezares 3000 series, Optima Drives

TYPE : OPS-328

Gearbox Type Allison, Eaton Fuller, It fits automatic and manual transmissions
Mounting Styles 8-Bolt, SAE C,
Control Type
Sense of Rotation
Ratio
Shift Type Mechanical
Standard Output Shaft Size 1-1/2" - 10T Spline w/ 1410 Flange
Intermittent Torque Rating 678  (Nm) - 500  (lbs.ft)
Output Shaft (HP) 500 RPM: 48, 1000 RPM: 95
Output Shaft (Kw) 500 RPM: 36, 1000 RPM: 71
Weight  34.5 (kg) - 76 (lbs)
Options
Truck brands
Applications Volvo, Mack, Daimler, Detroit,
Equivalent: Chelsea 823
Chelsea 823, toma de fuerza para Volvo, Mack, Daimler, Detroit, Optima Drives

TYPE : OPS-958

Gearbox Type Allison, Caterpillar, automatic transmissions
Mounting Styles 10-Bolt, designed with a heavy-duty clutch pack
Control Type
Sense of Rotation
Ratio
Shift Type PowerShift (Hydraulic)
Standard Output Shaft Size 1-1/2" - 10T Spline w/ 1410 Flange
Intermittent Torque Rating  780 (Nm) - 575 (lbs.ft)
Output Shaft (HP) 500 RPM: 55, 1000 RPM: 109
Output Shaft (Kw) 500 RPM: 41, 1000 RPM: 82
Weight  30 (kg) - 66 (lbs)
Options
Truck brands
Applications
Equivalent: Chelsea 859
Chelsea 859, toma de fuerza para transmisiones automáticas Allison, Caterpillar Optima Drives

TYPE : OPS-182

Gearbox Type Allison automatic transmission, medium-duty, low-profile PTO
Mounting Styles
Control Type
Sense of Rotation
Ratio
Shift Type
Standard Output Shaft Size
Intermittent Torque Rating  (Nm) - (lbs)
Output Shaft (HP)
Output Shaft (Kw)
Weight
Options
Truck brands
Applications Refuse trucks, Utility trucks, Fire/rescue vehicles, Dump Truck and Trailer
Equivalent: Chelsea 280, 281, Bezares 3252, 3260 (helical gear), Muncie CS24
Toma de fuerza Chelsea 280, 281, Bezares 3252, 3260 (engranaje helicoidal), Muncie CS24, toma de fuerza para transmisión automática Allison Optima Drives

TYPE : OPS-244

Gearbox Type Allison, Aisin, Chevrolet, Eaton Fuller, Mack, Warner,
Mounting Styles
Control Type
Sense of Rotation
Ratio
Shift Type
Standard Output Shaft Size
Intermittent Torque Rating  (Nm) - (lbs)
Output Shaft (HP)
Output Shaft (Kw)
Weight
Options
Truck brands
Applications
Equivalent: Chelsea 442, Bezares 1000, Muncie TG6
Chelsea 442, Bezares 1000, Muncie TG6, pto for Allison, Aisin, Chevrolet, Eaton Fuller, Mack, Warner, Optima Drives
* The original part numbers, reference numbers and brand names are used only for identification purposes. They do not imply that the products are original (OEM).
