PRODUCTS | PTO - POWER TAKE OFF | ALLISON

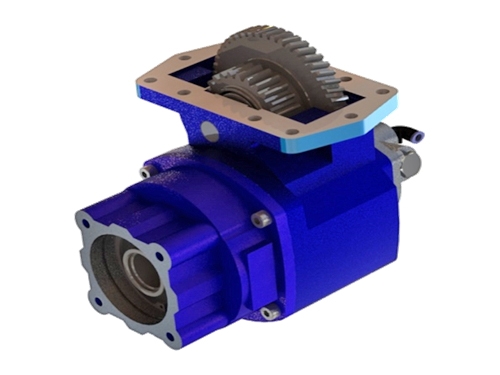

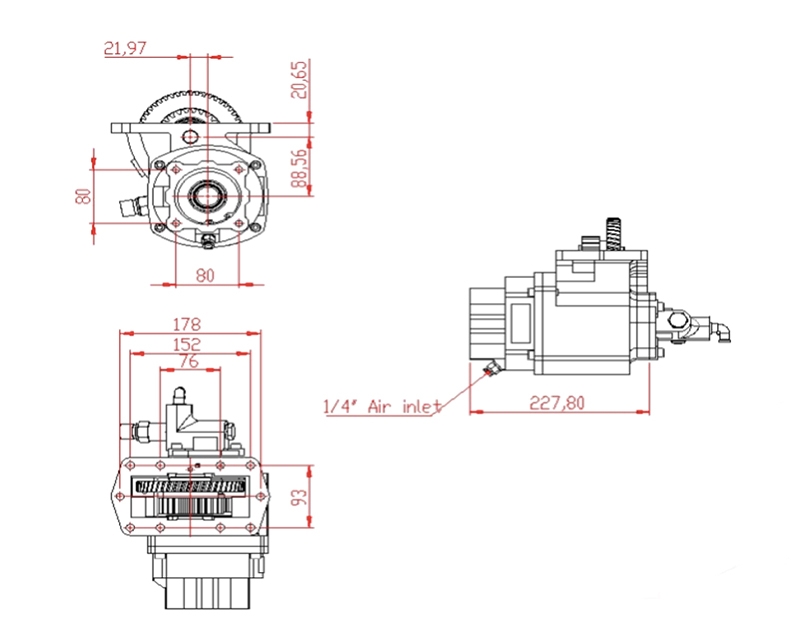

OPS-862 Hot Shift, 2 gear Power Take-off

Gearbox Type Allison Automatic transmission, medium-duty, low-profile PTO
MD-3000/3060/3066/3070/3200/3500/3560
HD-4000/4060/4500/4560/4700/4800
Mounting Styles Right, Left
Control Type Pneumatic
Sense of Rotation Right
Ratio 0,66
Shift Type Power Shift (Hydraulic) Hydraulic
Standard Output Shaft Size
Intermittent Torque Rating  (Nm) - (lbs)
Output Shaft (HP)
Output Shaft (Kw)
Weight
Options SAE B, SAE BB, or ISO 4 bolts
Truck brands
Applications Refuse trucks, Utility trucks, Fire/rescue vehicles, Dump Truck, and Trailer
Equivalent: Chelsea 280, 281, Muncie CS24
Bezares 3252 (241703, 241903), 3260 (helical gear)
clutch shift PTO
Power Take-off, PTO, hot shift pto, Allison pto, bezares pto, parker pto, chelsea pto, muncie pto, Chelsea 280, 281, Muncie CS24 Bezares 3252 (241703, 241903), 3260 (helical gear) Optima DrivesPower Take-off, PTO, hot shift pto, Allison pto, bezares pto, parker pto, chelsea pto, muncie pto, Chelsea 280, 281, Muncie CS24 Bezares 3252 (241703, 241903), 3260 (helical gear)

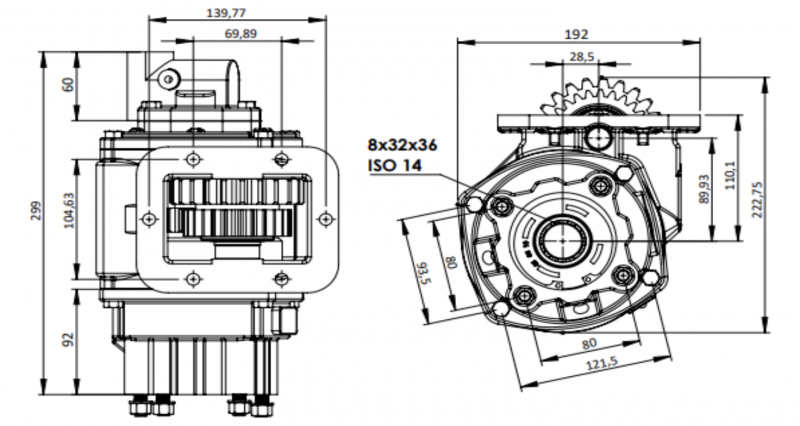

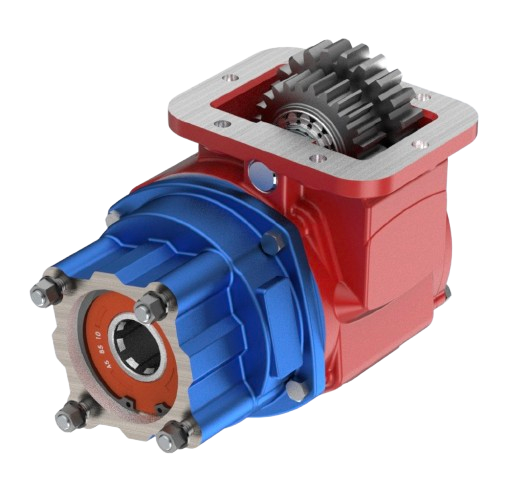

OPS-233

Gearbox Type Allison 1000-2000-2100-2200-2400 transmission and Aisin automatic transmissions
Mounting Styles 6 bolt, hotshift PTO - Clutch System
Control Type Pneumatic
Sense of Rotation Left
Ratio 0,72
Shift Type Electric Shifting
Standard Output Shaft Size
Intermittent Torque Rating  400 (Nm) - (lbs)
Output Shaft (HP)
Output Shaft (Kw) 41,9
Weight  22-25
Options ISO & SAE B & SAE B-B & UNI & Flange Outputs
Truck brands ISUZU / KENWORTH / PETERBILT / FORD / MITSUBISHI / DETROIT DIESEL / ZETROS MERCEDES / 180E28 IVECO / 65CF-240 DAF / DENNIS Elite / DENNIS Elite Kerbsider / DENNIS Sabre XL / 2628LL Econic MERCEDES BENZ / SEDDON / HINO USA NB6J / NC6J / ND8J / NE8J / NJ8J / ND8J / NF8J / NV8J
Applications Dump Trucks, Tow and Recovery, Water Trucks, Service Trucks, Aerial Trucks
Equivalent: Chelsea 271 - 272, Bezares 3300, Muncie CS6, Chelasea 272XAAJX-13AB, INP 096A6, INP 096H1, Muncie TG Series
pto Chelsea 271 - 272, Bezares 3300, Muncie CS6, hot shift PTO for Allison 1000/2000 transmission and Aisin automatic transmissions Optima Drivespto Chelsea 271 - 272, Bezares 3300, Muncie CS6, hot shift PTO for Allison 1000/2000 transmission and Aisin automatic transmissions

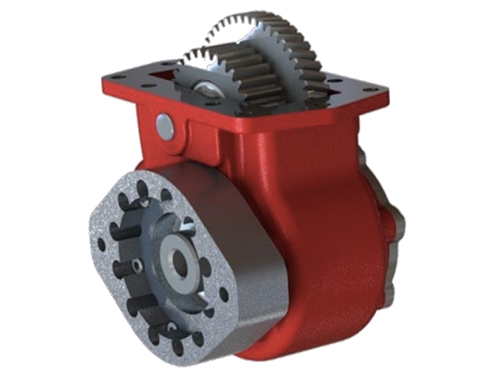

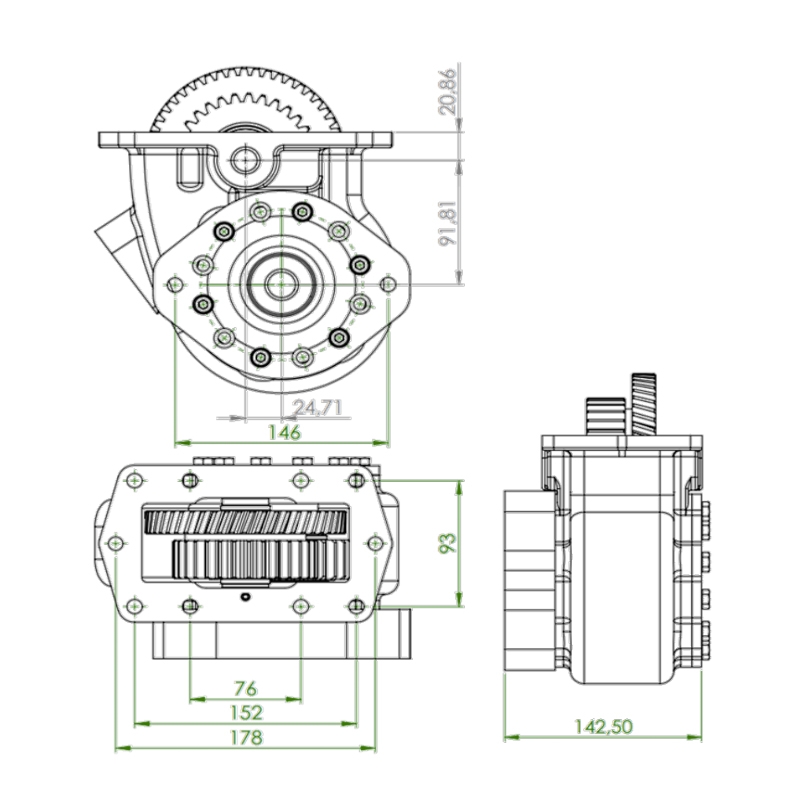

OPS-672

Gearbox Type Allison and CAT automatic transmissions
Mounting Styles 10-Bolt, Right, Left
Control Type Pneumatic
Sense of Rotation Right
Ratio 1/1
Shift Type
Standard Output Shaft Size
Intermittent Torque Rating
Output Shaft (HP)
Output Shaft (Kw)
Weight  16 Kg
Options
Truck brands
Applications ideal for mobile applications requiring continuous power for load-sensing pumps like used on yard jockey trucks.
Equivalent: Parker/Chelsea PTO 267 series
Parker, Chelsea PTO 267, Optima DrivesParker, Chelsea PTO 267,
* The original part numbers, reference numbers and brand names are used only for identification purposes. They do not imply that the products are original (OEM).
