PRODUCTS | Reduction Gearbox

ORG-80K/C-2 | REDUCTION GEARBOX

Torque  80 Kgm
Ratio 1/1,5
  with Clutch System (hot shift)

* Contact us for higher power, torque, or special ratio requirements.
Description
Multi-Purpose Reduction gearbox with internal Clutch System

REDUCTION GEARBOX Optima DrivesREDUCTION GEARBOX

OPS503 SV ENGINE MOUNT TRANSFER CASE

Outlet Torque  60 Kgm | 588 Nm
Max Power available at shaft  94 Kw
Max. output speed 3000 RPM
Ratio  0,5
Rotation Sense  The gearbox rotates in the opposite direction of the motor.
Air pressure  between 8-10 bar
Weight  55 KG
Working with Pneumatic Clutch System
DESCRIPTION: SAE 4 engine mounting transfer case,
* Contact us for higher power, torque, or special ratio requirements.
Engine mounting transfer case, Direct mount transfer case, SAE 4 mounting, SAE 4 engine mounting transfer case Optima DrivesEngine mounting transfer case, Direct mount transfer case, SAE 4 mounting, SAE 4 engine mounting transfer case

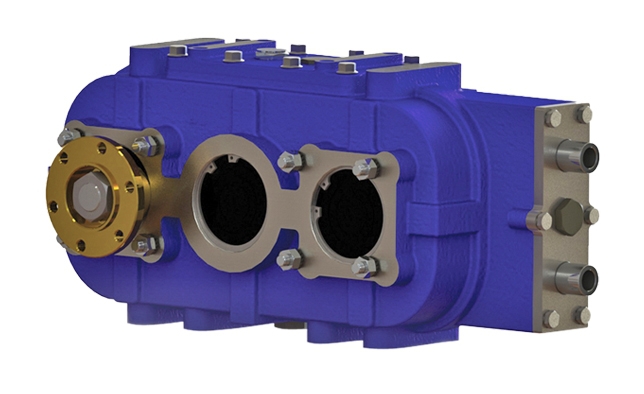

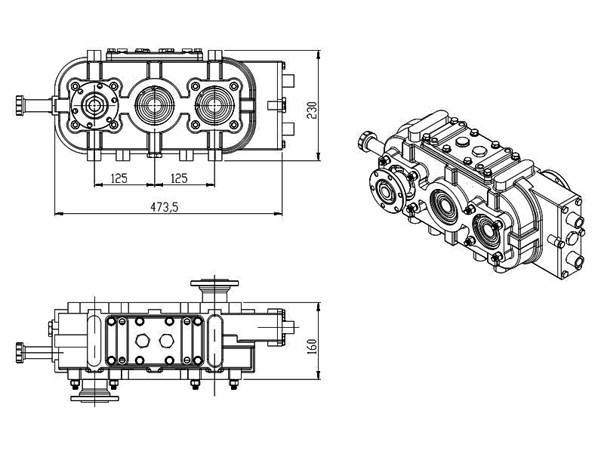

ORG-80K/2 | SPLITTER GEARBOX

Main Drive Torque between 85-90 Kgm (880 Nm)
Output Torque between 35 Kgm -  75 Kgm (350-750 Nm)
Ratio 1/1 - 1/2,5 - 1/1,8

Description
Weight: 24 kg

* Direct pump mounting version available.
Equivalent to Interpump, PZB, Hydrocar 3.4.2.6 (Transfer Case for ISO bolt pumps 3425, 3426)
Vertical version available HVR 100, 150, 200, PZB 100, 150, 200

SPLITTER GEARBOX FOR ISO 4 BOLT PUMPS
The splitter gearbox is a gearbox that allows multiple outputs from a single input, which can be used for:
- Forestry and grab cranes with two separate hydraulic circuits,
- Flour, grain, cement, etc. The tank requires a hydraulic pump and a compressor for tipping and blowing, or for any other application that requires separate drives.
Depending on the selected unit, it is possible to increase or decrease the output speed if required. However, a 1:1 ratio version is available.



increasing gearbox, reduction gearbox, speed increaser, reducer, RPM increaser, Reducteur, Parallel-shaft gear reducer, Parallel gearbox, Katsa, speed up gearbox, Multiplier, Optima Drivesincreasing gearbox, reduction gearbox, speed increaser, reducer, RPM increaser, Reducteur, Parallel-shaft gear reducer, Parallel gearbox, Katsa, speed up gearbox, Multiplier,

ORG-80K/C-3 | REDUCTION GEARBOX

Torque

80 Kgm | 785 Nm
Ratio 1 / 1,5
  with Clutch System (hot shift)

* Contact us for higher power, torque, or special ratio requirements.
Description
Multi-Purpose Reduction gearbox with internal Clutch System (hot shift).
* Clutch works with a pneumatic system
* You can engage and disengage the shaft while it is turning with our clutch. It is also called the hot shift.
RPM increaser, RPM Decreaser,

Multi-Purpose Reduction gearbox, Reduction gearbox with internal Clutch System, RPM increaser, RPM Decreaser, speed up gearbox, hot shift PTO, reduction gearbox for trucks, distributor gears, Multiplier, Optima DrivesMulti-Purpose Reduction gearbox, Reduction gearbox with internal Clutch System, RPM increaser, RPM Decreaser, speed up gearbox, hot shift PTO, reduction gearbox for trucks, distributor gears, Multiplier,

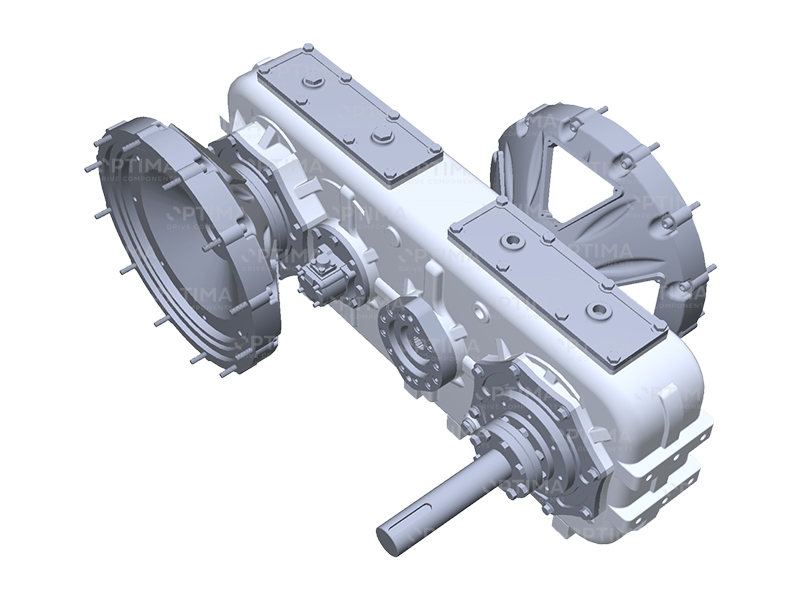

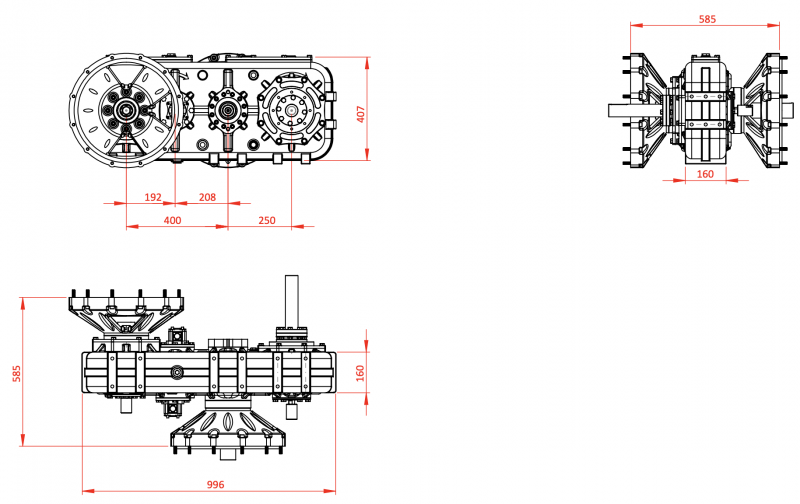

OPS-370 DIRECT ENGINE MOUNT GEARBOX

Engin power max 200hp
Engin speed 2000 RPM
Max. output speed 3000 RPM
Ratio
  with Clutch System (hot shift)
Rotation Sense The gearbox rotates in the opposite direction of the motor.
Engine cw (right)
Air compressor ccw (left)
Pump ccw (left)
Weight

* Contact us for higher power or torque requirements.
DESCRIPTION
include Additional Hydraulic clutch control and additional cooling system
OPS370 Direct engine mount gearbox designed for Slurry Pumps.
Optima has launched a series of innovative Power-Take-Off (PTO) Clutches for direct-driven rock crushers, screeners, waste shredders, and other heavy-duty working machines.
Equivalent to KATSA gearboxes

Direct engine mount gearbox, innovative Power-Take-Off (PTO) Clutches for direct-driven rock crushers, screeners, waste shredders, and other heavy-duty working machines. Optima DrivesDirect engine mount gearbox, innovative Power-Take-Off (PTO) Clutches for direct-driven rock crushers, screeners, waste shredders, and other heavy-duty working machines.

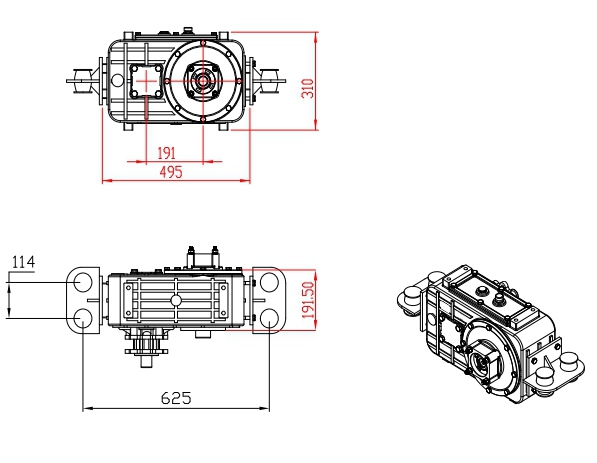

OPS-943 Fully low-floor Tram Gearboxes

Version R3 6.92
SPEED RATIO İ= 6,921
POWER - WEIGHT  P - W= 72kW - 200kg
MAX INPUT TORQUE M1= 500Nm
MAX INPUT SPEED n1= 4753 RPM
AXLE TECHNICAL CONDITIONS
MAX SPEED OF VEHICLE  Vmax= 75 km/h
AXLE ROAD Qdv= 98.1 kN (10t)
IMPULSE LOADING FROM THE SURFACE OF THE RAIL
X- LONGITUDINAL 1,8 / 16 g
Y- DIAGONAL  3,5 / 27,5 g
Z- VERTICAL 5 / 35,7 g
DESCRIPTION
Equivalent  to Wikov Gearbox
Tram Gearboxes Optima DrivesTram Gearboxes

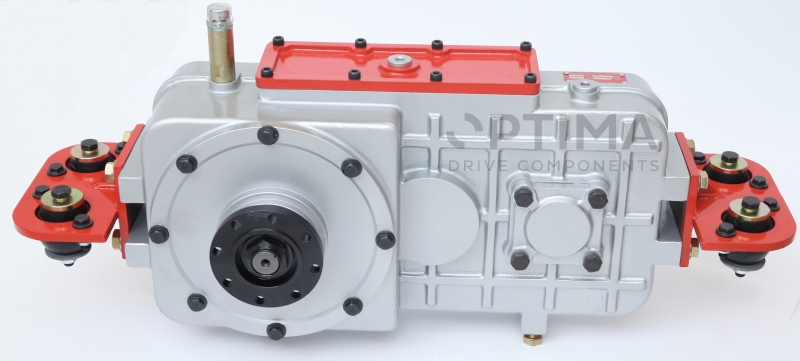

OPS432 | REDUCTION GEARBOX

Main Drive Torque 60 Kgm | 588 Nm
Output Torque -
Ratio 1/2,5 - 1/1,8
Weight 26 kg - 32,5 kg

* Contact us for higher power, torque, or special ratio requirements.
DESCRİPTİON
Multi-Purpose Reduction gearbox with internal Clutch System.
* Clutch works with pneumatic system
* You can engage and disengage the shaft while it is turning with our clutch. It is also called the hot shift.
RPM increaser, RPM Decreaser,





increasing gearbox, reduction gearbox, speed increaser, reducer, RPM increaser, Reducteur, Parallel-shaft gear reducer, Parallel gearbox, Katsa, speed up gearbox, reduction gearbox for trucks, distributor gears, Optima Drivesincreasing gearbox, reduction gearbox, speed increaser, reducer, RPM increaser, Reducteur, Parallel-shaft gear reducer, Parallel gearbox, Katsa, speed up gearbox, reduction gearbox for trucks, distributor gears,

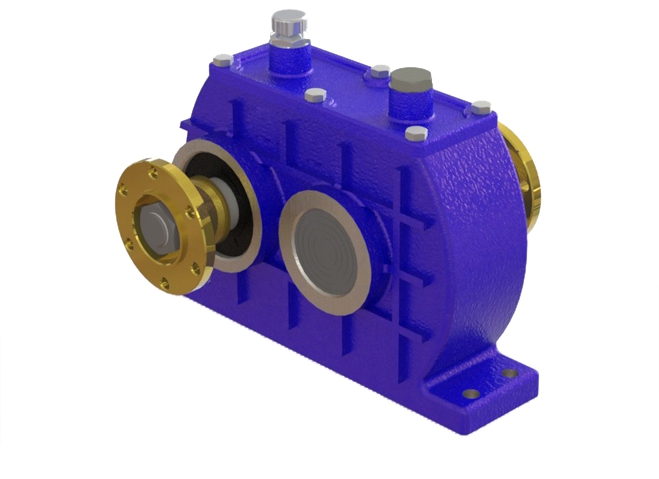

ORG-60K/3 | REDUCTION GEARBOX

Inlet Torque  50 & 100 Kgm
Ratio 1/1 - 1/1,27 - 1/1,33 - 1/1,5 - 1/1,8 - 1/2 - 1/2,5 - 1/3,76

Description
weight : 26 kg - 32,5 kg

reduction gearbox, speed increaser, reducer, RPM increaser, Reducteur, Parallel-shaft gear reducer, PARALLEL GEARBOX, speed up gearbox, Optima Drivesreduction gearbox, speed increaser, reducer, RPM increaser, Reducteur, Parallel-shaft gear reducer, PARALLEL GEARBOX, speed up gearbox,

ORG-60K/C-2 | REDUCTION GEARBOX

Torque 60 Kgm
Ratio 1/1
  with Clutch System (hot shift)

* Contact us for higher power, torque, or special ratio requirements.
DESCRİPTION
Multi-Purpose Reduction gearbox with internal Clutch System

Multi-Purpose Reduction gearbox with internal Clutch System, reduction gearbox, speed increaser, reducer, RPM increaser, Reducteur, Parallel-shaft gear reducer, Parallel gearbox, speed up gearbox, Optima DrivesMulti-Purpose Reduction gearbox with internal Clutch System, reduction gearbox, speed increaser, reducer, RPM increaser, Reducteur, Parallel-shaft gear reducer, Parallel gearbox, speed up gearbox,

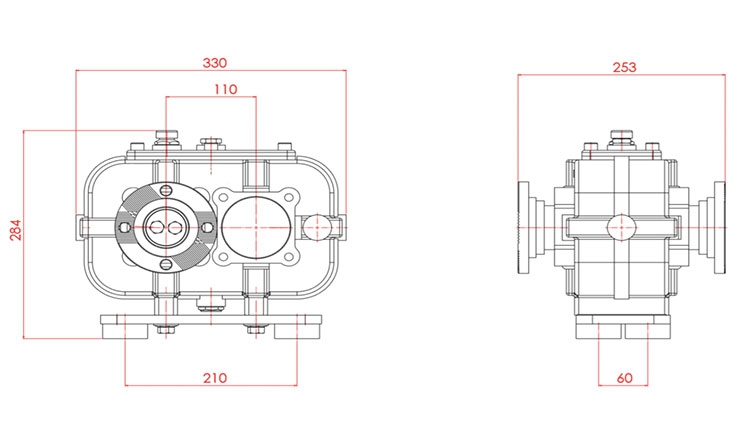

ORG-40K/2 | REDUCTION GEARBOX

Main Drive Torque  40 Kgm | 392 Nm | 41,8 Kw
Output Torque
Ratio 4/1
Description
Weight 32 kg
reduction gearbox, speed increaser, reducer, RPM increaser, Reducteur, Parallel-shaft gear reducer, PARALLEL GEARBOX, Optima Drivesreduction gearbox, speed increaser, reducer, RPM increaser, Reducteur, Parallel-shaft gear reducer, PARALLEL GEARBOX,

OPS872 | REDUCTION GEARBOX

Output Torque 1.785 Kgm - 17.500 NM
Speed 4000 rpm
Ratio 1/1

Description Firefight trucks, rotary drill vehicles,
reduction gearbox, speed increaser, Custom Gearbox, Optima Drivesreduction gearbox, speed increaser, Custom Gearbox,

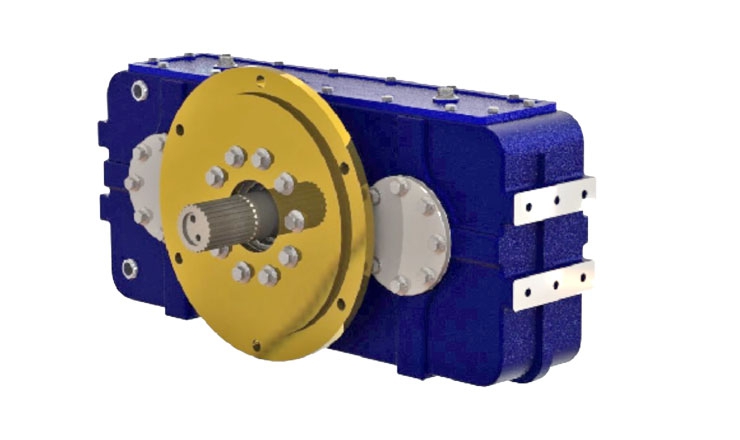

ORG-240K | REDUCTION GEARBOX

Output Torque  240 Kgm | 2.353 Nm | 250 KW
Ratio 1/1,02

Weight  250 kg
Description Custom gearboxes, special gearboxes for mining, rotary drill vehicles,
  multiple gear pump drive, engine mount gearbox, engine mount transfer case, engine mount pump drive,
multiple gear pump drive, engine mount gearbox, engine mount transfer case, engine mount pump drive, reduction gearbox, speed increaser, custom made gearboxes, Custom gearboxes, special gearbox, Optima Drivesmultiple gear pump drive, engine mount gearbox, engine mount transfer case, engine mount pump drive, reduction gearbox, speed increaser, custom made gearboxes, Custom gearboxes, special gearbox,

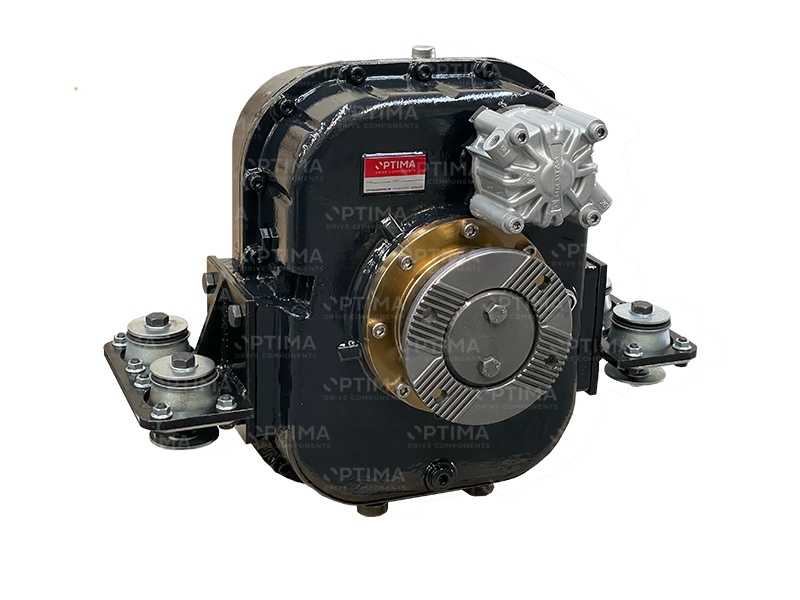

OSR-600HP | SPEED REDUCER

Torque max 600 HP - 3000 KGM
Ratio 1-1/4 (1000 rpm to 250 rpm)
Rotational speed  max 2500 rpm
  pneumatically operated
Weight 178 KG

* speed reducer (PTO, reduce the engine speed).
* The OSR-600HP speed reducer is suitable for 30-ton vehicles.
* Designed to reduce the vehicle speed. Like: road marking and street marking vehicles.
* The direction of rotation is the same as the engine.
* speed change gearbox, special gearbox, speed decrease gearbox.
* Equivalent to OMSI FLK1700

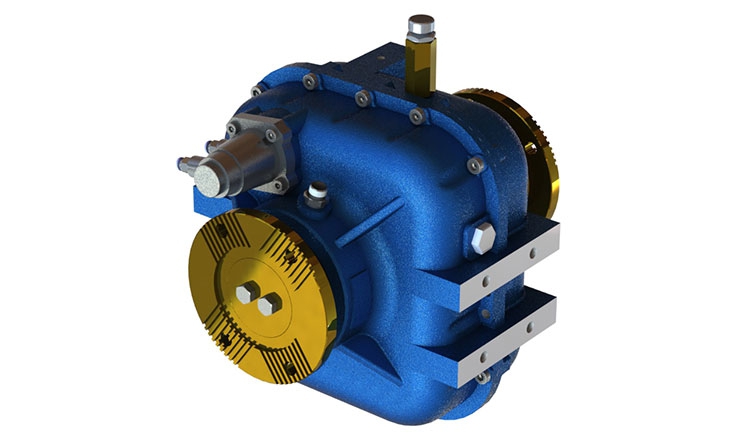

Designed for 30-ton vehicles, this gearbox features a planetary gear system with a capacity of 400 HP / 3000 KGM of torque. When engaged, it reduces the incoming power by four times before transmitting it to the output. While the vehicle is in driving mode, it transmits all incoming power to the differential.
Applications: Road Marking vehicles, Railway Vehicles, Catenary & Track maintenance vehicles (Tesmec, LineWise, Omac), Road and Rail Rescue and Recovery Vehicles ( Uromac), Sweeping Trucks,  Cleaning Trucks




reduction gearbox, speed reducer, acceleration, deceleration, speed change gearbox, special gearbox, Optima Drivesreduction gearbox, speed reducer, acceleration, deceleration, speed change gearbox, special gearbox,

OSR-260HP | SPEED REDUCER

Torque max 260 HP
Ratio 1:3,5 (1000 rpm to 250 rpm)
Rotational speed  max 2500 rpm
  pneumatically operated
Weight 67 kg

* Speed Reducer (PTO, reduces the engine speed.)
* The direction of rotation is the same as the engine.
* Designed to reduce the vehicle speed. Like: road marking, street marking vehicles, crop spraying machines, tar spraying machines, white lining trucks, road sweepers, refuse trucks.
* for medium-sized vehicles.
* speed change gearbox, special gearbox, speed decrease gearbox.
* Equivalent to omsi FLK1700
* Our speed reducers/gearbox is inserted into the transmission line to change the final drive speed. Reduction gearboxes allow the vehicle to travel at speeds as low as 0.01 Kilometers per Hour, upwards, depending on the vehicle's build and specification. Typical applications include crop-spraying machines, tar-spraying machines, white-lining trucks, road sweepers, refuse trucks, and any vehicle where controlled low-speed operation is necessary. These units are available for vehicles ranging from 3.5 tonne through to 30 tonne Gross Vehicle Weight.

reduction gearbox, speed reducer, acceleration, deceleration, speed change gearbox, special gearbox, Optima Drivesreduction gearbox, speed reducer, acceleration, deceleration, speed change gearbox, special gearbox,

OPC-110K | PNEUMATIC CLUTCH

Output Torque 110 Kgm
1000 dev/dak (115kw)
Max Speed 2800-3300 RPM
Ratio 1/1
Weight 45 kg

Description
New Clutched connection. Now you can engage and disengage shafts while they are working.
Other ratios are available on request.

Pneumatic clutch, engag, disengage Cardan shaft, In Line Clutches Optima DrivesPneumatic clutch, engag, disengage Cardan shaft, In Line Clutches

OPC-60K | PNEUMATIC CLUTCH

Output Torque 60 Kgm
1000 dev/dak (63 kw)
Max Speed 2800-3300 RPM
Ratio 1/1

Description
Weight: 21 kg
Other ratios are available on request.

Pneumatic clutch, engage, disengage Cardan shaft, In Line Clutches, Optima DrivesPneumatic clutch, engage, disengage Cardan shaft, In Line Clutches,
* The original part numbers, reference numbers and brand names are used only for identification purposes. They do not imply that the products are original (OEM).
